FP33 analyzer

Purpose:

Multigas (multicomponent) portable analyzer explosion-proof, for simultaneous measurement of the volume fraction of combustible gases  of methane (CH ₄ )  or  propane (C ₃ H ₈ ) ,  oxygen (O ₂ ) and  carbon monoxide (CO)  and issue audible and visual alarms when exceeding threshold values the volume fraction of gases.

Supported gases:

• Methane  (CH ₄ )
• Propane  (C ₃ H ₈ )
• Oxygen  (O ₂ )
• Carbon monoxide  (CO).

• Application area:

  Objects of gas distribution systems (GDS, EMG, GEO, etc.), wells, pits, wells, underground storage of gas and other underground and aboveground closed space, in which the formation of explosive mixtures of gases and vapors categories IIA, IIB, IIC, groups T1 ... T5 according to GOST 30852.0.

  Distinctive features:

  • Durable metal casing contrast display.
  • A wide temperature range.
  • High measuring accuracy.
  • Built micropump and gazozabornaya rod for forced intake sample medium to be analyzed.
  • It has the function of the accumulation of data on the concentrations of the gases being measured.
  • Service is provided with an infrared port for reading data accumulation and diagnosis or instrument settings, without opening the housing. Catalytic bead sensors used its own production.
  • Protection thermo sensor from poisoning - in excess of the maximum concentration of the gas appliance automatically switches off the sensor and the micropump.
  • The gas analyzer is labeled Ex 1Eh [ib] dIIVT5 and intended for operation in hazardous areas.
  • Service life of at least 10 years.


  Contents of delivery:

  • gas analyzer
  • Gazozabornaya rod for terrestrial applications (* optional)
  • Telescopic boom for terrestrial applications (* optional)
  • Comfortable shoulder strap
  • cover
  • Charger
  • Passport

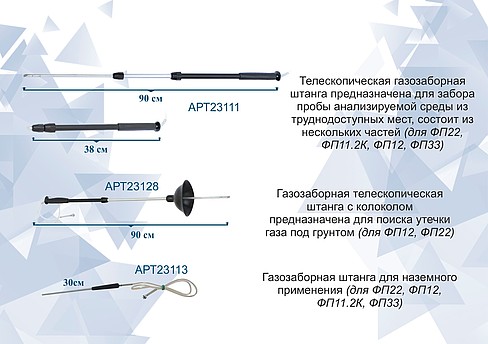

  Gazozabornye rod for forced intake sample medium to be analyzed



  Specifications

  Weight, dimensions:	mass, of no more than	Dimensions in mm.
  without rod intake	700	160 x 120 x 33
  Temperature range, ° C:	-30 to +50
  Battery life, h .:	ten
  Time to 90% of the value of the testimony:	sec., not more
  methane (propane)	15
  oxygen	thirty
  Carbon monoxide	90
  . Micropump rated output, l / min, at least:	0.3
  Measuring ranges, reading:	measurement,%	readings%
  the volume fraction of CH 4	0 - 2.50	0 - 5.00
  the volume fraction of C 3 H 8	0 - 1.00	0 - 2.00
  the volume fraction of O 2	0 - 25.00	0 - 25.00
  mass concentration of CO, mg / m 3	10 - 125	10 - 125

  additional characteristics

  alarm threshold:	TH1 (threshold2),%	error limit,%
  the volume fraction of CH 4	1.00 (5.00)	± 0,2
  the volume fraction of C 3 H 8	0.40 (2.00)	± 0,2
  the volume fraction of O 2	18.0 (2.0)	± 0,2
  mass concentration of CO, mg / m 3	20 (100)	± 0,2
  Limits of permissible basic and additional absolute measurement error:	General absolute error,%	further, for every 10? C ambient temperature. environment,%
  the volume fraction of CH 4	± 0,25	± 0,2
  the volume fraction of C 3 H 8	± 0,10	± 0,2
  the volume fraction of O 2	± 0,5	± 0,2
  mass concentration of CO, mg / m 3	± 25	± 0,2
  . Time of operating mode, with no more than:	ten
  Open circuit voltage of the battery running, V., no more than:	5.8
  Current battery short circuit, A, no more than:	0.6
  Maximum power consumption, VA:	3
